Industrial-Grade HSK Drill & Cope Machine
Industrial Drill And Cope Machine
Consistent Products
Increased Throughput
Lower Labor Costs
Ideal Drill And Cope Machine For Precision End Matching
Industrial-Grade Drill And Cope Machine Demonstration Video: Watch Now

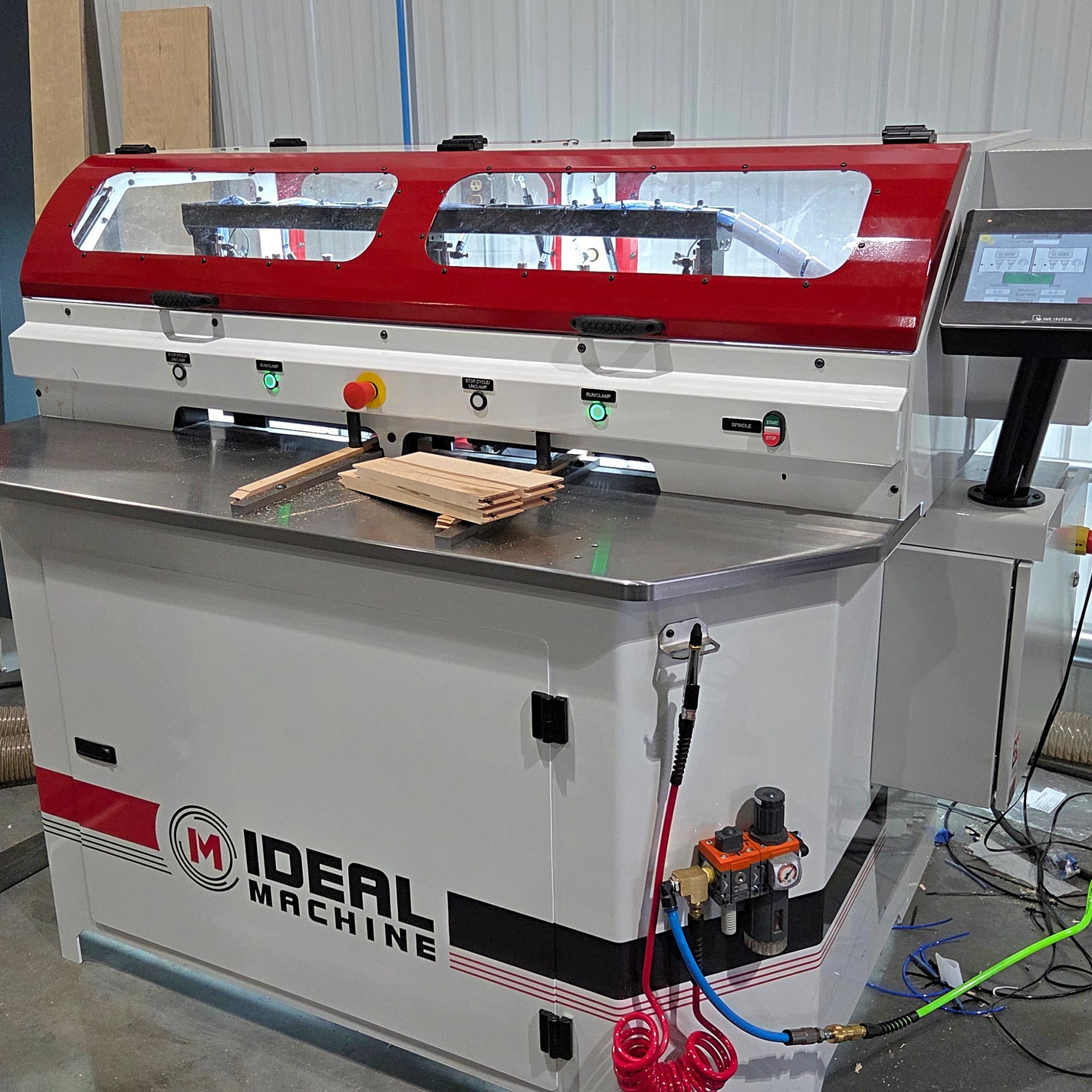

Watch this video of the Industrial Drill And Cope Machine from Ideal Machine's CM Series of machines perfectly prepping these 5-piece cabinet door rails for dowel insertion end matching. Using tiny fluted dowels is a woodworking end-matching technique that creates a superior wood joint according to Wood Magazine. Ideal Machine now offers an end cope machine that pre-drills all your dowel insertion holes for you. The industrial drill and cope machine does not insert dowels for you.
Industrial Drill And Cope Machine Specifications
- HSK Quick Change Coping Head
- ER30 Collet For Drilling
- Dual Station Material Processing
- 3-Axis Servo Positioning Of Cutter Head And Drill For Fast & Accurate Setup
- 1x 8 HP Spindle For Cutter Head @ 4,000 - 12,000 RPM
- 1x 5 HP Spindle For Drill Head @ 4,000 - 20,000 RPM
- Single Piece Or Double Piece Processing Per Station
- Auto-Sensing Board Width For Faster Cycle Times And Drill Placement
- Presets For Fast Tool Changeover
- Cut Cycle Time: 20 Seconds Per End Cope
- Dust Collection: 2x 4" Outlets
- Compressed Air Required: 80 PSI
- RFID Tooling Setup Optional

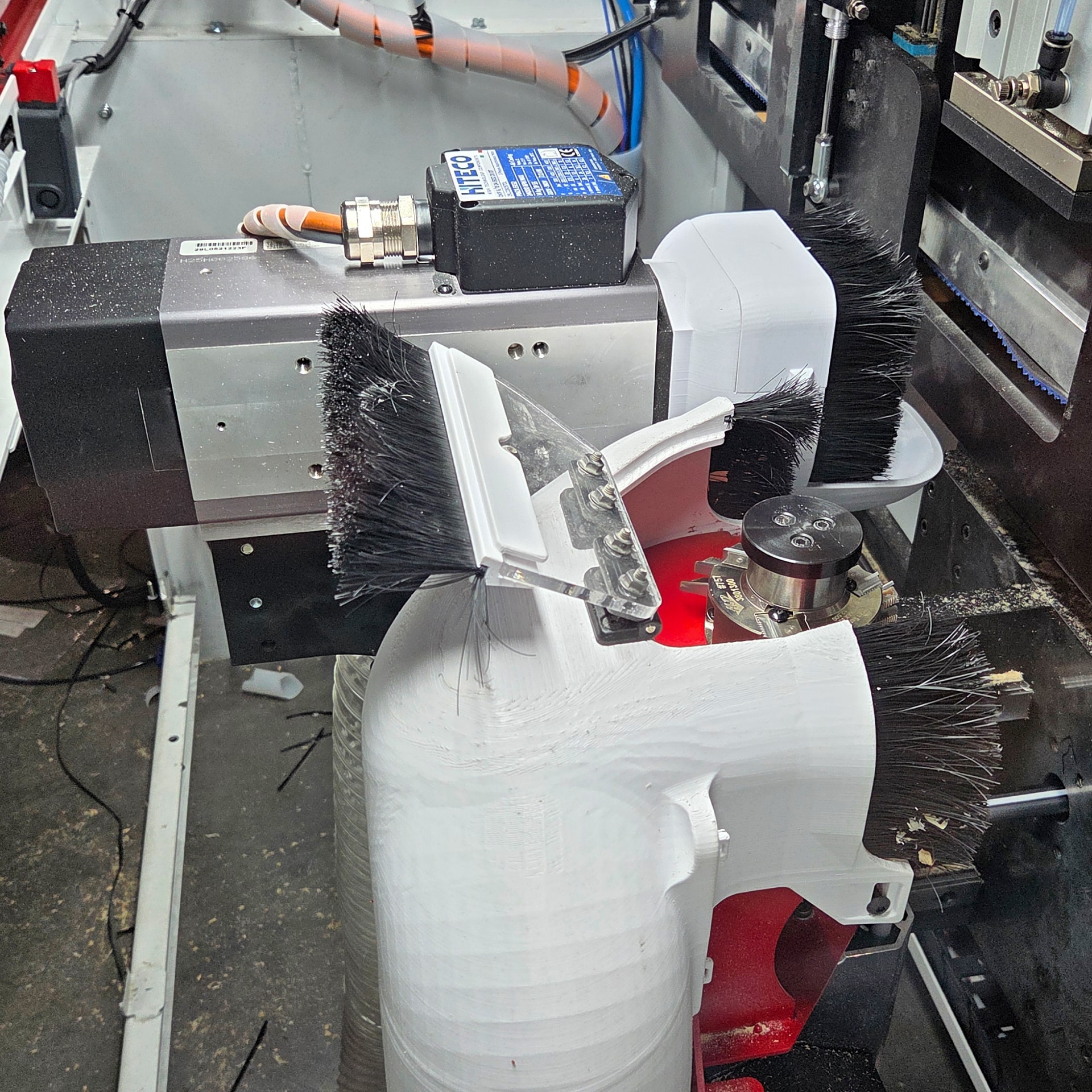

HSK Drill And Cope Machine For End Matching And Dowel Insertion Prep
The Industrial Drill and Cope Machine from Ideal Machine offers you the fastest tool changeover possible with HSK63F. In less than a minute you can switch tools from one profile to another. This means you can switch from job to job prepping all your parts for dowel-insertion end matching with almost no effort. This will greatly speed up your manufacturing process.
Servo-Driven Drill And Cope Machine End Matching

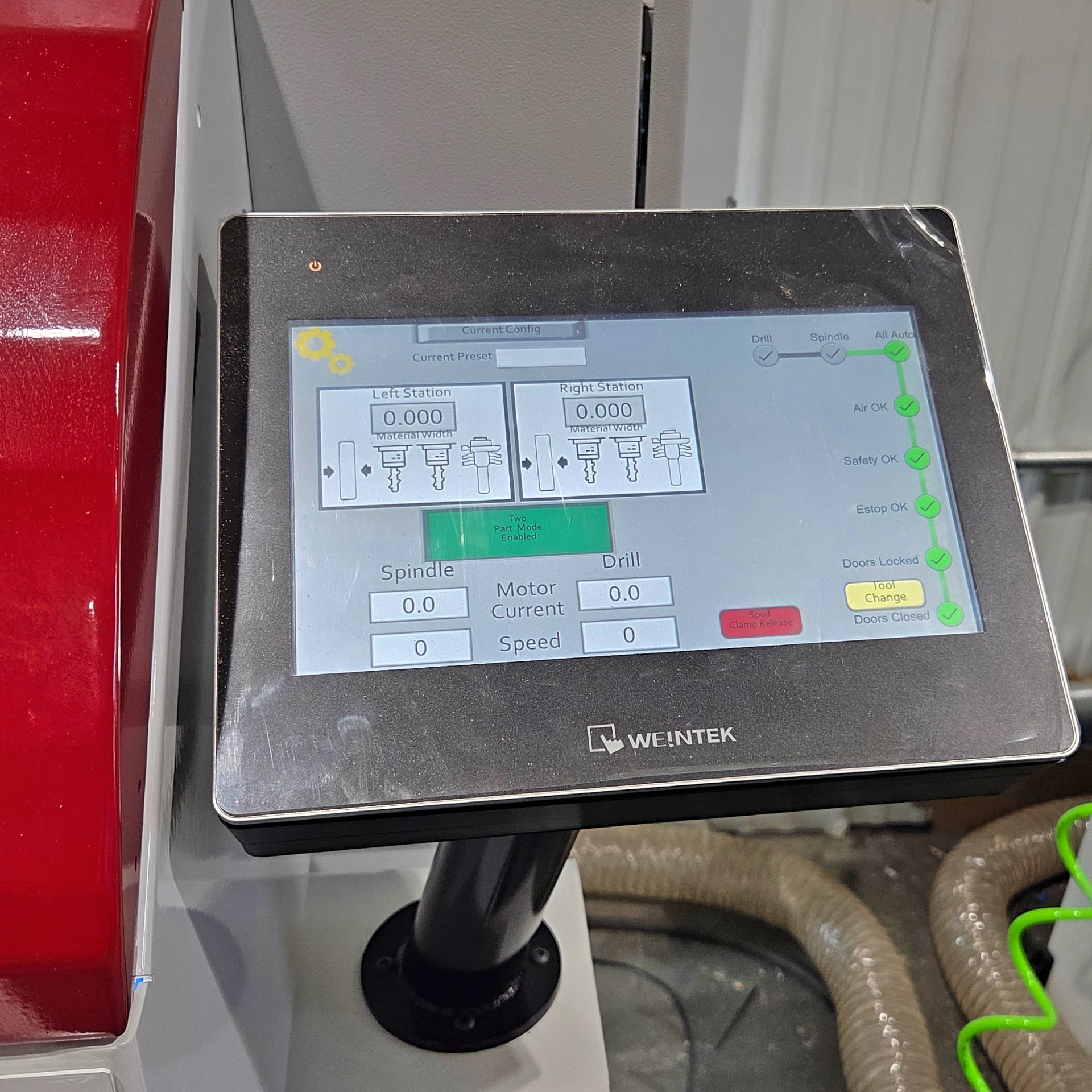

The CM Series of machines from Ideal Machine are all servo-driven. This means smoother performance and faster, easier adjustment. Everything can be done with the included PLC touchscreen controls. Your drill and coping adjustment process has never been so easy and pain-free!
Some Of Our Satisfied Clients
Single Spindle HSK
Drill And Cope Machine
Find A Dealer
Contact us for pricing and features.
Receive & Install
We ship the machinery with all the parts and instructions for fast setup.
Operate Efficiently
Enjoy increased workflow and consistent shaping in your shop!
Why Choose The CM Series Industrial Drill And Cope Machine From Ideal?
The CM Series cope and drill machine from Ideal Machine brings you the same precision and industrial-grade performance of all our other CM wood cope machines with the added benefit of dowel hole drilling. Whether you are already using dowel-insertion joinery or want to begin using wood dowels to strengthen your wood cope joints, the CM Series Industrial Drill and Cope Machine by Ideal Machine is what you are looking for.
Equipped with the easy-to-use PLC touchscreen controls, all servo-driven functions, and HSK quick change that make our other wood coping machines standout, the CM drill and cope from Ideal Machine will improve your parts and manufacturing.
Machinery is
guaranteed to work
as described
1-year warranty on our
parts and manufacturer’s
warranty on the rest
Quick setup
and
operation
We provide full
customer service
and support
Superior Dowel Joinery With A CM Series Drill And Cope Machine
Your parts quality and end product quality are what set you apart from your competition and make your offerings unique. Implementing dowel insertion end matching on your products strengthens your products.
If you are looking for an industrial-grade drill and cope machine that is designed for high production manufacturing then you're looking for a CM Series Industrial Drill and Cope Machine from Ideal Machine. Contact us today to learn more!
