Industrial-Grade HSK Precision Wood Cope Machine
HSK Cope Machine
Consistent Products
Increased Throughput
Lower Labor Costs

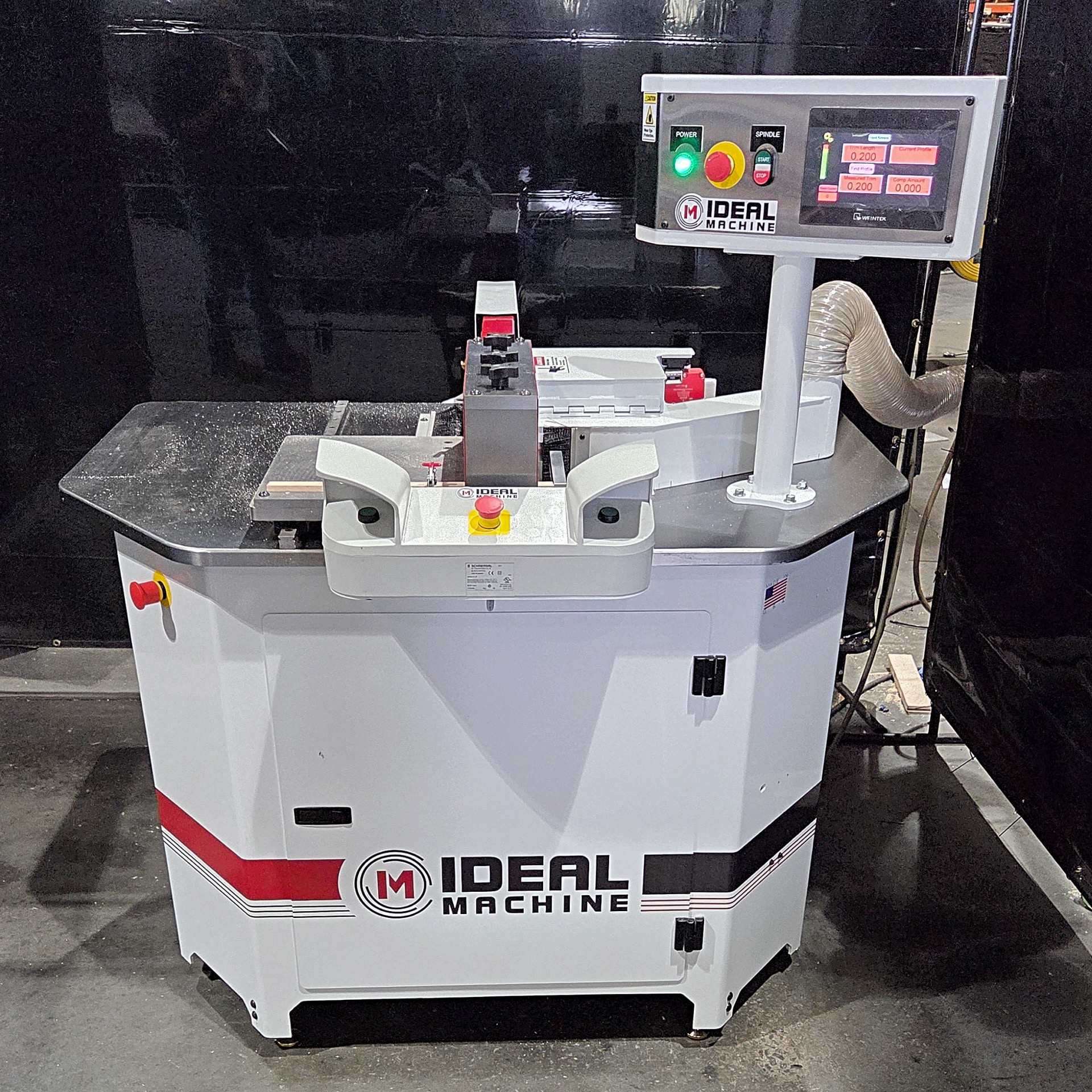

Single Spindle HSK Quick Change Cope Machine: CM500S
HSK Tabletop Cope Machine Demonstration Video: WATCH NOW

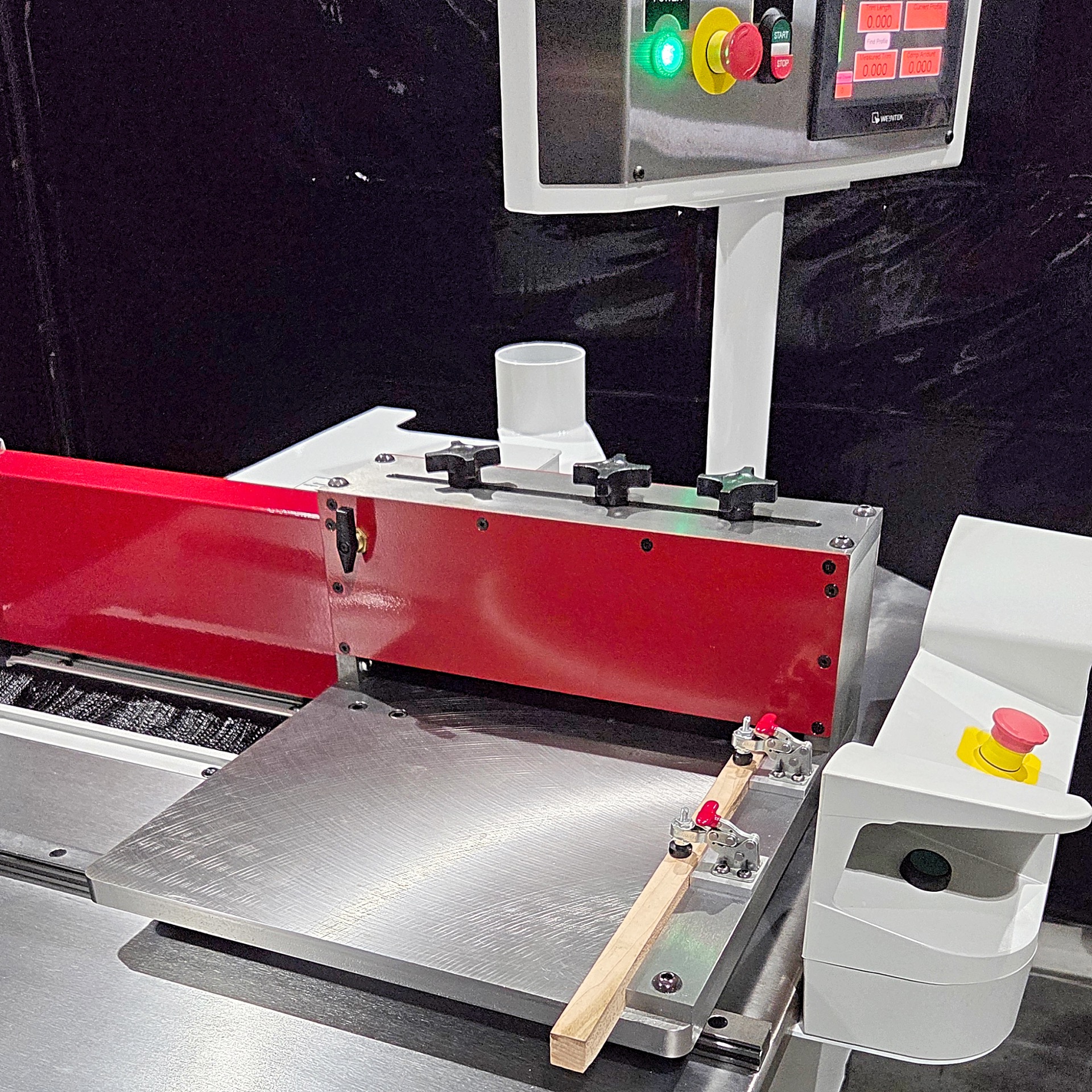

Want to see the CM500S Tabletop HSK Cope Machine in action? Watch the YouTube demonstration video to see the CM500S put through all its functions. In this video we showcase all the features of our new single-spindle cope machine. You can see the servo-driven material sled run parts smoothly past the fixed HSK cutter head. Watch as we use the PLC touchscreen controls to digitally adjust the material stop. See for yourself how fast the HSK makes tool changeover and watch the pneumatic material clamos cycle without material.
HSK Quick Change Cope Machine Specifications
- HSK Quick Change End Coping Machine
- HSK QC Direct Drive Electric Spindle
- HSK Quick Change Tooling
- Single Spindle Machine
- Max Material Width 12"
- Digitally Set Material Stop For Increased Accuracy
- Servo-Driven Feed Table
- Pneumatic Material Clamping
- PLC Touchscreen Controls
- Dust Collection: 4" Outlet

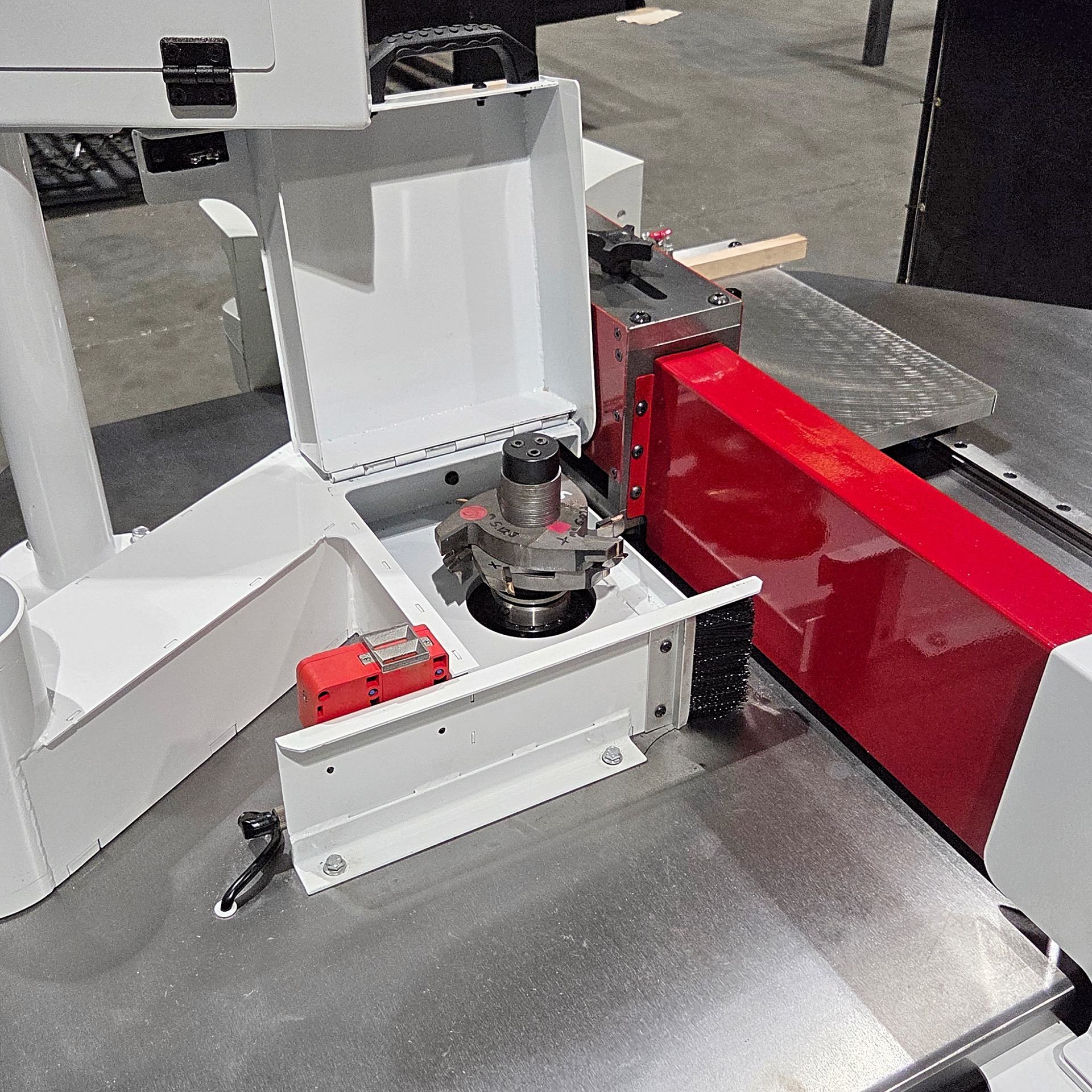

HSK Quick Change Coping Spindle
Meet the CM500S, Ideal Machine's newest HSK Cope Machine to joining our machinery lineup. The CM500S is an industrial coping machine for cabinet doors. Featuring a single HSK quick change spindle, the CM500S uses a blow-out block with locking clamps to prevent material chipping. The HSK makes changeover fast and easy, saving production downtime and increasing production efficiency and speed.

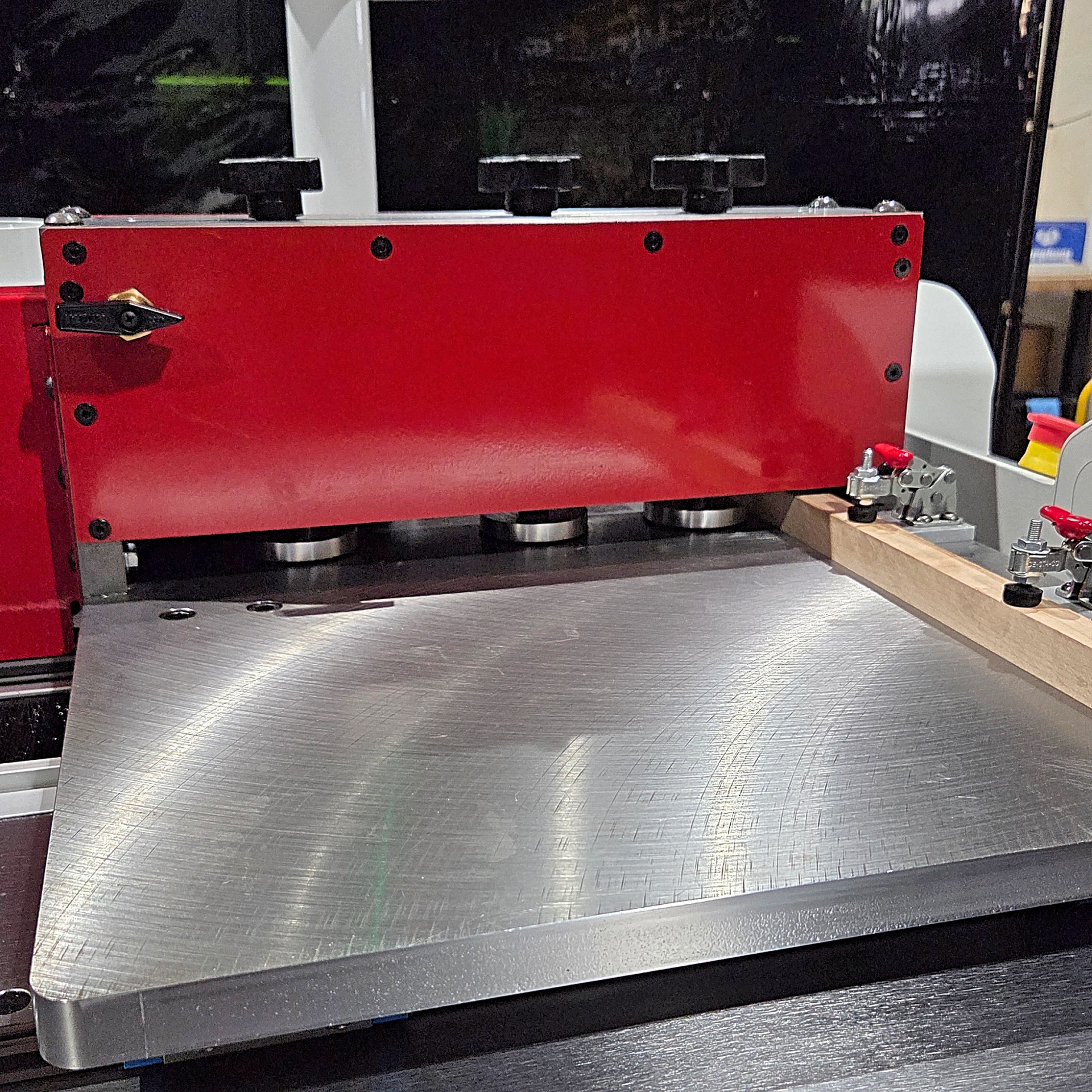

Servo-Driven Material Coping Table
Becasue the CM500S's HSK spindle does not move, it relies on the servo-driven material table to perform each cope. The servo material sled is set up to accommodate a blow-out piece that saves your cabinet door pieces from chipping and blowing out at the end of the cope cycle.
The material sled can hold up to 12" of material to cope on each activation. You can cope one piece at a time up to 12" wide or any combination of parts at one time as long as their total combined width does not exceed 12". This allows you to cope multiple parts at one time for faster material processing and increased parts production per hour.
Some Of Our Satisfied Clients
Single Spindle HSK
Wood Coping Machine
Find A Dealer
Contact us for pricing and features.
Receive & Install
We ship the machinery with all the parts and instructions for fast setup.
Operate Efficiently
Enjoy increased workflow and consistent shaping in your shop!
Why Choose The CM500S Cope Machine From Ideal?
We design and build innovative, heavy-duty industrial machinery for the woodworking industry. The CM500S is a precision coping machine designed to deliver repeatable quality parts and faster production rates. You can rely on the quality and attention to detail that we pour into every machine we produce. Our machines are safe and easy to use so that your operators can focus on doing their best work while increasing efficiency in the workday.
Machinery is
guaranteed to work
as described
1-year warranty on our
parts and manufacturer’s
warranty on the rest
Quick setup
and
operation
We provide full
customer service
and support
Reliable Precision Material Coping Every Time
Are you ready to increase your production volume but don't want to sacrifice quality or increase waste?
- The CM500S HSK quick-change spindle reduces changeover time
- The CM500S allows you to cope multiple parts at one time
- The CM500S operation is reliable and user-friendly
You can change and improve your manufacturing with precision woodworking machinery from Ideal Machine.
Contact us today to get pricing or more information about a CM500S HSK Cope Machine for your business.
